My Latest Projects : CD Rom style brushless motor
CD Rom style brushless motors have been around now for at least a year. In that time a company called Go-Brushless has been supplying CD Rom components so that you can create matched motors or at least be able to purchase standard parts.
|

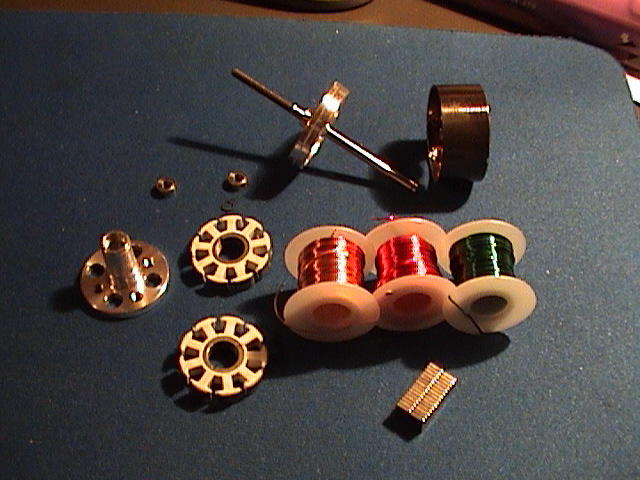

Here is what you get. Locate the flux ring, One end has a slight chamfer. The magnets are flush with the other side.
|

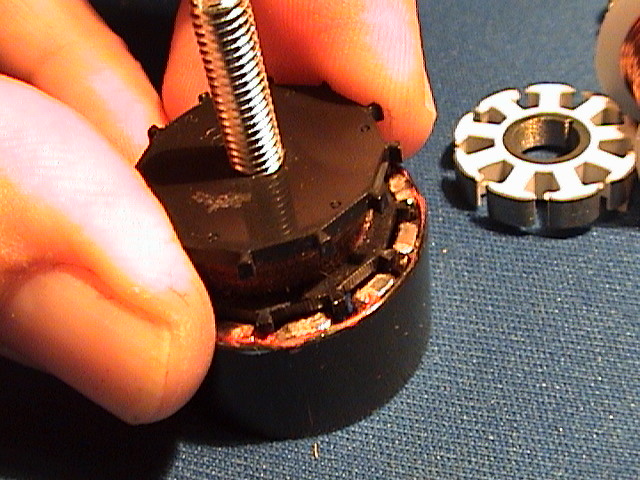

Use the optional spacer to evenly space the 12 magnets, NSNSNSNSNSNS
|

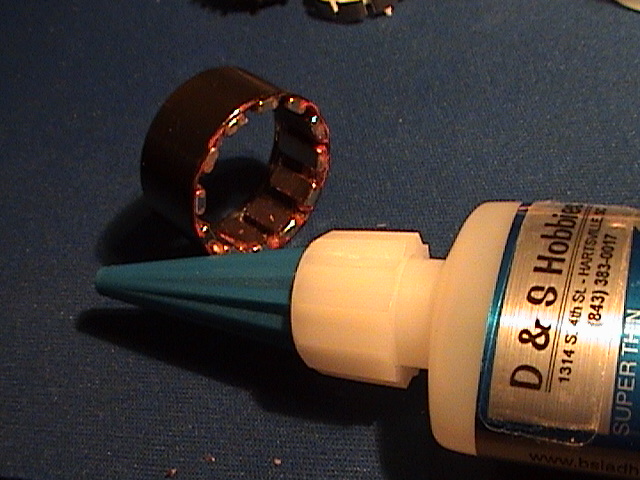

Use thin CA to glue in the magnets
|
Remove CA from on top of the magnets
Next , mix up some 5 minute epoxy. Carefully apply epoxy in between the magnets. The more careful you are now, the less epoxy trimming you will do when it cures. |
I use a bamboo skewer
|
Epoxy trimmed and smoothed to give a good bond to the magnets
|

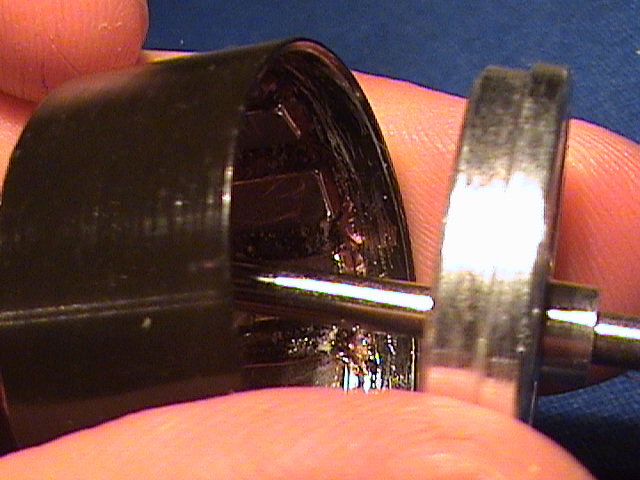

Line up the flux ring and End Bell
|
